All the benefits of a VLM in the space of a vertical carousel

Modula Slim is the smart choice for anyone looking for a vertical storage solution with complete flexibility.

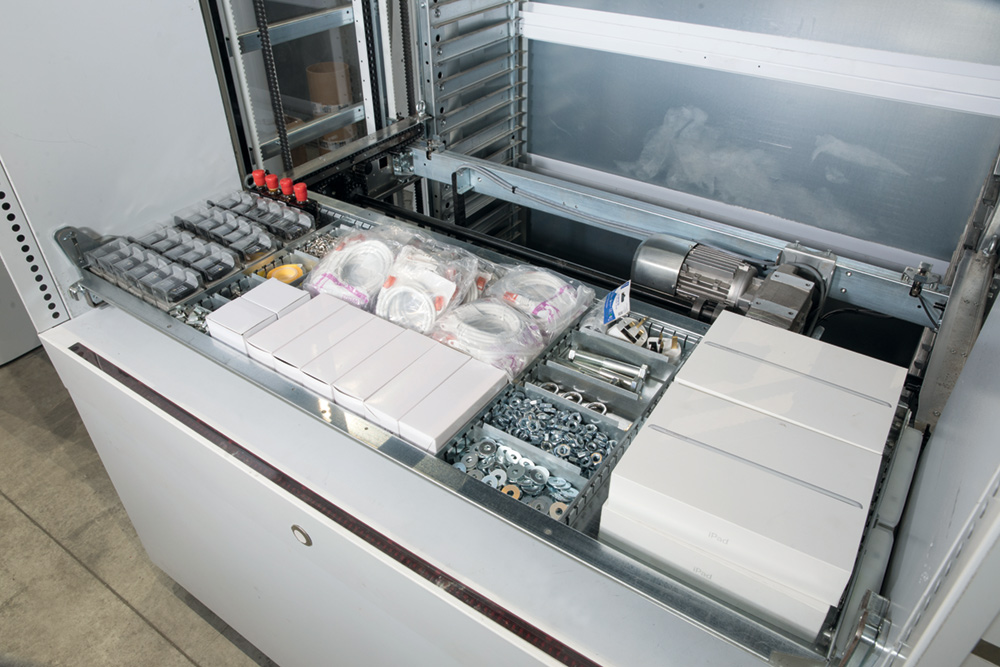

You can store all sorts of materials and products in your Modula Slim: loose materials, containers (boxes, bins, packs, cartons, cases), small items, spare parts, coils, flasks.

The best of the LIFT technology built in a:
• 3 sq.m of floor space
• 1,6 m depth

What Modula Slim can do for you?

Recovers floor space, making the most of storage density

Reduces picking times

Makes materials accessible to all operators, quickly and ergonomically

Keeps stock levels and all warehouse items under control

Integrates easily into your company processes by communicating with all ERP systems

Tracks picking and refilling operations, identifying who did what and controls every access

Eliminates picking and refilling errors by guiding the operator through the process

Make use of all the space inside your Modula SLIM without limits or constraints

Total payload is up to 25.000 kg with 7 metres in height and no more than 1,6 m in depth

You can make use of all the availabe space in your VLM thanks to dynamic tray height storage: there are no fixed heights as the Modula Slim calculates the best place to put the trays and eliminates any wasted space between them

With Lift technology and the way the elevator moves, there are no issues with unbalanced loads unlike with carousel systems

Energy consumption is relatively low: less than 1,2 kW/h

You can choose to power the warehouse with a three-phase (400V) or a single-phase (230V) supply

Maintenance is limited: the V-Shape toothed belt transmission system is super quiet, requires no lubrication and its self-aligning pulley system means it’s super easy to install and adjust

You can add all options from the Modula range such as visual aids, Put to light, access control systems, partitions, dividers and slotted tray walls to subdivide the trays

Unit heights from 2.400 mm to 7.000 mm
Unit height increments on 100 mm
Tray storage adjustability 25 mm
Tray widths 1.300 – 1.900 – 2.500 mm
Tray depths 425 mm
Net tray payload capacities 350 kg
Gross unit load capacity 25.000 kg
Maximum height of stored materials 650 mm
Throughput up to 190 trays/hr (depending on the configuration)
Operator interface 10.4” touch screen industrial console (Copilot)
Number of Bays 1
Type of bays internal with single delivery level
